Example datasets

High-speed recordings are large, so the example datasets are not shipped with the package. They are published on Zenodo and downloaded on first use into ~/.pyidi/datasets. The cache directory can be changed with the PYIDI_DATA_DIR environment variable or with the data_dir argument.

pyidi.datasets.list_datasets()          # {'music_box': 'Vibrating comb of a ...'}
video = pyidi.datasets.load_dataset('music_box')

Every dataset is loaded the same way, through pyidi.datasets.load_dataset(); each one also has a named shortcut, such as pyidi.datasets.load_music_box().

Music box

A recording of the vibrating steel comb of a mechanical music box, made with a Photron FASTCAM SA-Z at 7500 fps, 640 x 552 px, 12-bit (10.5281/zenodo.22105821, CC BY 4.0). The teeth are cantilevers of graduated length, each ringing at its own natural frequencies with sub-pixel amplitudes on a naturally speckled surface.

import pyidi

video = pyidi.datasets.load_music_box()

lk = pyidi.LucasKanade(video)
lk.set_points([[109, 500], [175, 500], [329, 500]])   # three teeth of the comb
lk.configure(roi_size=(21, 51))                       # a region one tooth tall
displacements = lk.get_displacements()

One frame is 0.67 MiB, so the 600 frames of the default window are a 404 MiB download. The published excerpt holds 3000 frames (0.4 s) and n_frames='all' downloads it to its end. The excerpt itself is a part of a 36 GiB recording of 55 238 frames, which is in the same Zenodo record and can be downloaded manually if a longer signal is needed.

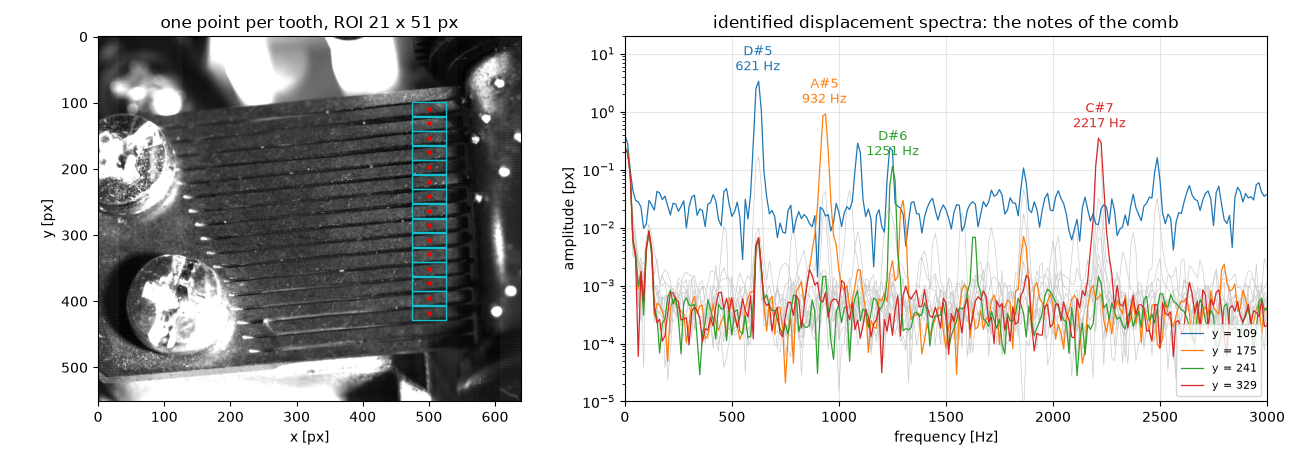

The teeth run horizontally across the frame, clamped at the left (the staircase of slot ends) and free at the right (x ~ 560 px), with a pitch of about 22 px. Points at x = 500 and a region of interest of one tooth, e.g. roi_size=(21, 51), work well: the region is then not confused by the neighbouring teeth and is long enough horizontally to have plenty of texture.

In the excerpt, one tooth rings from the start and another one is plucked at about frame 350. The default window (first_frame=400) opens after that pluck, where both teeth ring freely, with amplitudes from 0.03 px to 3 px, and the motion is smooth enough to be tracked from a single reference image. first_frame=0 includes the pluck itself, where the tooth moves by more than 10 px between consecutive frames — a much harder case for any local method.

A complete analysis — from the raw video to the notes of the comb and to the operating deflection shape of a single tooth — is in the Showcase_music_box.ipynb example notebook.

If you use the dataset, please cite it:

Stanovnik, G., & Slavič, J. (2026). High-speed video of a vibrating music-box comb (Photron FASTCAM SA-Z, 7500 fps, 640x552 px) [Data set]. Zenodo. https://doi.org/10.5281/zenodo.22105821

The arguments of the loader are documented with the rest of the source code, see pyidi.datasets.

Adding a dataset

A dataset is a dictionary of metadata in the pyidi.datasets.DATASETS registry, so adding one needs no new code. The download strategy is shared: a Zenodo record holding a Photron cihx header next to an uncompressed mraw file of fixed-size frames, which is what lets a window be addressed by byte offset and fetched with a range request.

pyidi.datasets.register_dataset({
    'name': 'my_recording',
    'record': '1234567',            # Zenodo record id
    'header_file': 'my_recording.cihx',
    'data_file': 'my_recording.mraw',
    'header_md5': '...',
    'n_frames_total': 5000,
    'image_height': 512,
    'image_width': 512,
    'bytes_per_pixel': 2,
})
video = pyidi.datasets.load_dataset('my_recording')

register_dataset accepts a dataset from anywhere, so a recording that is not part of pyidi can be loaded through the same functions. A dataset that ships with pyidi is simply registered in pyidi/datasets.py. The optional keys are doi, url, data_md5, fps, license, citation, description, default_first_frame and default_n_frames.
